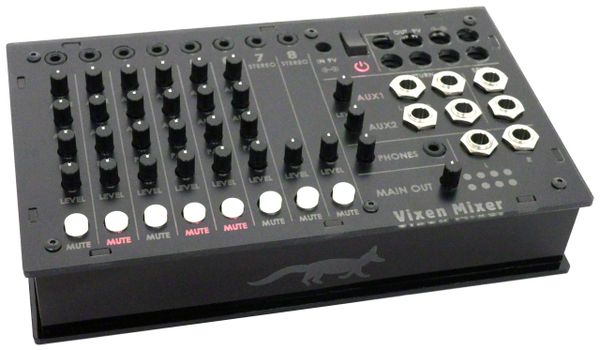

Vixen Mixer

$249.00

Production batch #1 is sold out.  Now accepting pre-orders for batch #2 which will ship at the end of July.

This is the mixer Volca lovers have been wanting for years:  overflowing with features while fitting into the footprint of a single Volca!  Flexible power options and convenient jack sizes make it easy for you to integrate this into your setup.

See the Vixen Mixer Demo on YouTube.

AUDIO SPECIFICATIONS

Channels 1-6
  • Mono 3.5 mm input jack (accepts TR or TRS plug)
  • Mute button w/ LED indicator
  • Gain knob
  • Pan knob
  • Aux Send 1 knob
  • Aux Send 2 knob

Channel 7

  • Stereo 3.5 mm input jack
  • Mute button (not clickless) w/ LED indicator
  • Gain knob

Channel 8

  • Stereo 3.5 mm input jack
  • Mute button (not clickless) w/ LED indicator
  • Gain knob

Aux Send 1 and 2

  • 6.35 mm (1/4") mono jacks

Aux Return 1 and 2

  • 6.35 mm (1/4") jacks for L/mono and R
  • Stereo gain knob

Main Out (stereo)

  • Stereo gain knob
  • 6.35 mm (1/4") jacks for L/mono and R

Phones Out (stereo)

  • Stereo gain knob
  • 3.5 mm (1/8") stereo jack


POWER SPECIFICATIONS

Power Input options include:

  • External AC-DC power supply (included).  Depending on your shipping address, you'll receive a mains power cord for USA, UK or EU wall sockets.
  • Internal battery compartment for 6 AA batteries that you provide.
  • High capacity, rechargeable external 9 VDC battery (not included) attached to the power input jack on the Vixen.  You will need to provide your own 5.5 x 2.1 mm barrel plug.

Power Output

NOTE:  The Vixen power hub is essentially a daisy chain cable that's been incorporated into the printed circuit board.  In some circumstances, one or more devices in the chain can cause noise due to differential ground voltage.  There are many solutions to ground hum noise outlined in the troubleshooting procedures in the FAQ.  One simple solution is to use battery power.  Fortunately, the Vixen can power itself and all connected devices using its onboard AA batteries or an external battery pack.  This will allow for the ultimate in noise-free operation.  By ordering the Vixen, you agree that you are aware of the risk of ground hum and that responsibility for troubleshooting will be yours.  KVgear is happy to offer advice, but we cannot accept returns due to ground hum.  [This paragraph added Jan. 30, 2018]
